heavy duty low-pro equipment

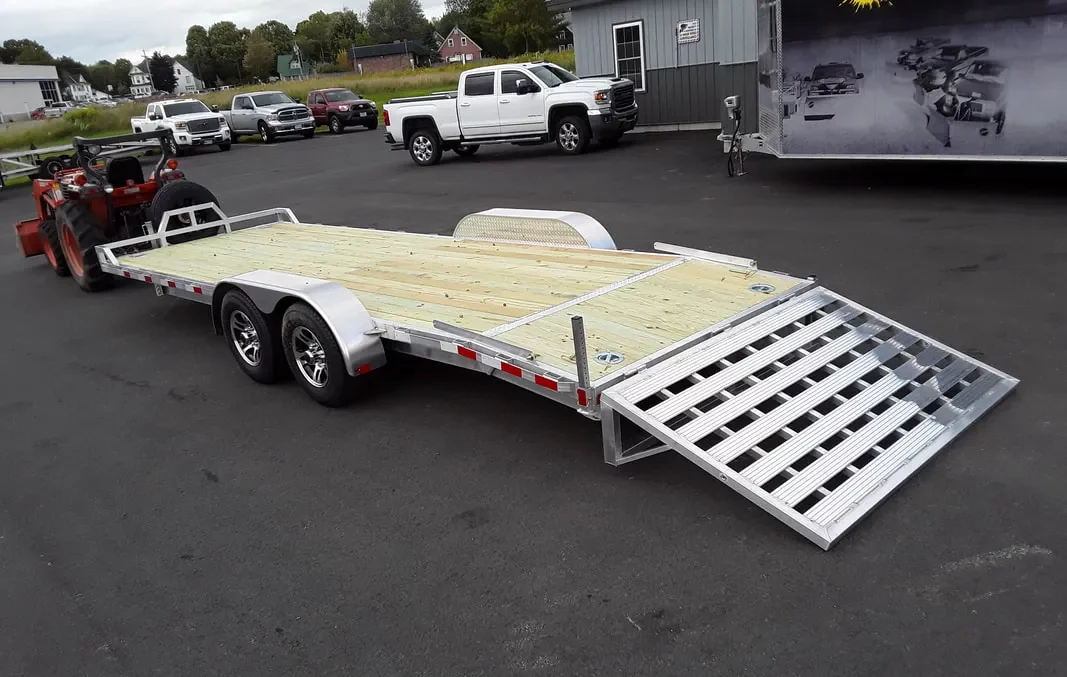

Our open Heavy Equipment Trailers are strong, rated for 10,000 pound loads with all aluminum welds, and flip down ramp gate or split ramps with footer for heavy duty loading. They come standard with wood plank decking or go for the rugged aluminum upgrade, with flush mount D-Rings in all corners. Does not come standard with rear beavertail, but is an add on option.
All Aluminum Construction
LED Lighting
Torsion Axles
Pocketed Rub Rail
Drop Leg Jack12″ O/C
5/4″ Pressure Treated Decking
2 5/16″ Coupler
Full Rear Ramp Gate w/ Foot
Front Bump Rail
4x Recessed D Rings
| Model | HDL6.5X14 | HDL6.5X16 | HDL6.5X18 | HDL6.5X20 | HDL6.5X22 | HDL6.5X24 |
|---|---|---|---|---|---|---|
| Axle Rating | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K | 2X 5.2K |
| Tires | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 | ST225/75R15 |
| Decking | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT | 5/4" PT |
| GVWR | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs | 9,990lbs |
| Curb Weight | 1,700lbs | 1,900lbs | 2,100lbs | 2,300lbs | 2,500lbs | 2,700lbs |
| Payload | 8,290lbs | 8,090lbs | 7,890lbs | 7,690lbs | 7,490lbs | 7,290lbs |
*Some images shown with options. See a dealer for more options, pricing and availability.
